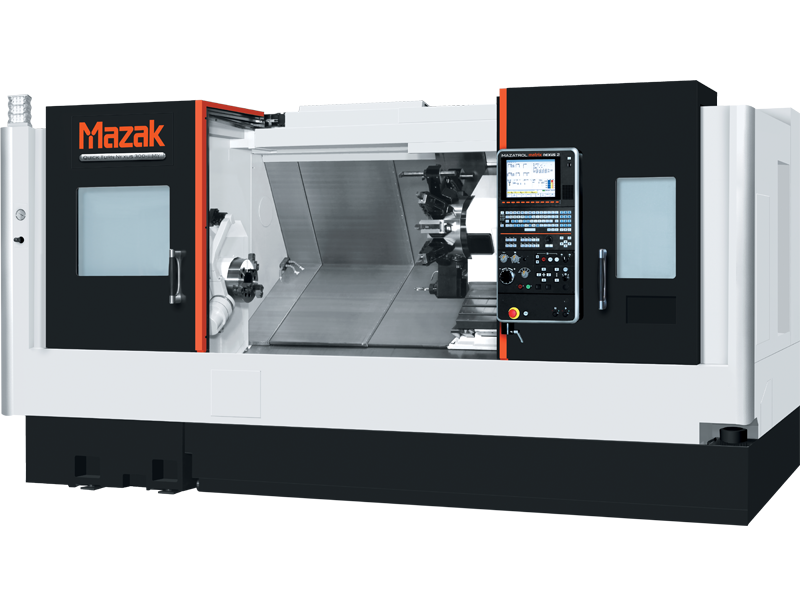

MAZAK – QUICK TURN NEXUS 350-II M

Lathe details:

Capacity

Maximum Swing : 29.50 in / 750 mm

Maximum Machining Diameter  :  16.540 in / 420 mm

Maximum Bar Work Capacity : 4.5 in / 102 mm

Maximum Machining Length : 60.712 in / 1539 mm

Turret (Upper)

Number of Tools: 12

Maximum Speed: 4000 rpm

Motor Output (4 minute rating): 10.0 hp / 8 kw

Main Spindle

Chuck Size: 15 in

Maximum Speed: 3300 rpm

Motor Output (30 minute rating): 40.0 hp / 30 kw

Feed Axes

Travel (X Axis): 10.13 in / 260 mm

Travel (Z Axis): 63.25 in / 1605 mm

MAZAK – QUICK TURN NEXUS 350-II M

PHONE: 770-222-4918
Our capabilities range from very small to large parts (up to 30,000 lbs). Examples: Tool & dies, fixtures for manufacturing, hydroform blocks, nuclear/ hydro power generation, proto types, medical parts, packaging equipment, etc….
•Hydro/Nuclear Power Generation •Medical •Automotive •Aerospace •Communications •Robotics •Marine •Equipment manufacturing •Pipeline •Pulp and Paper •Plastics
